Product Description

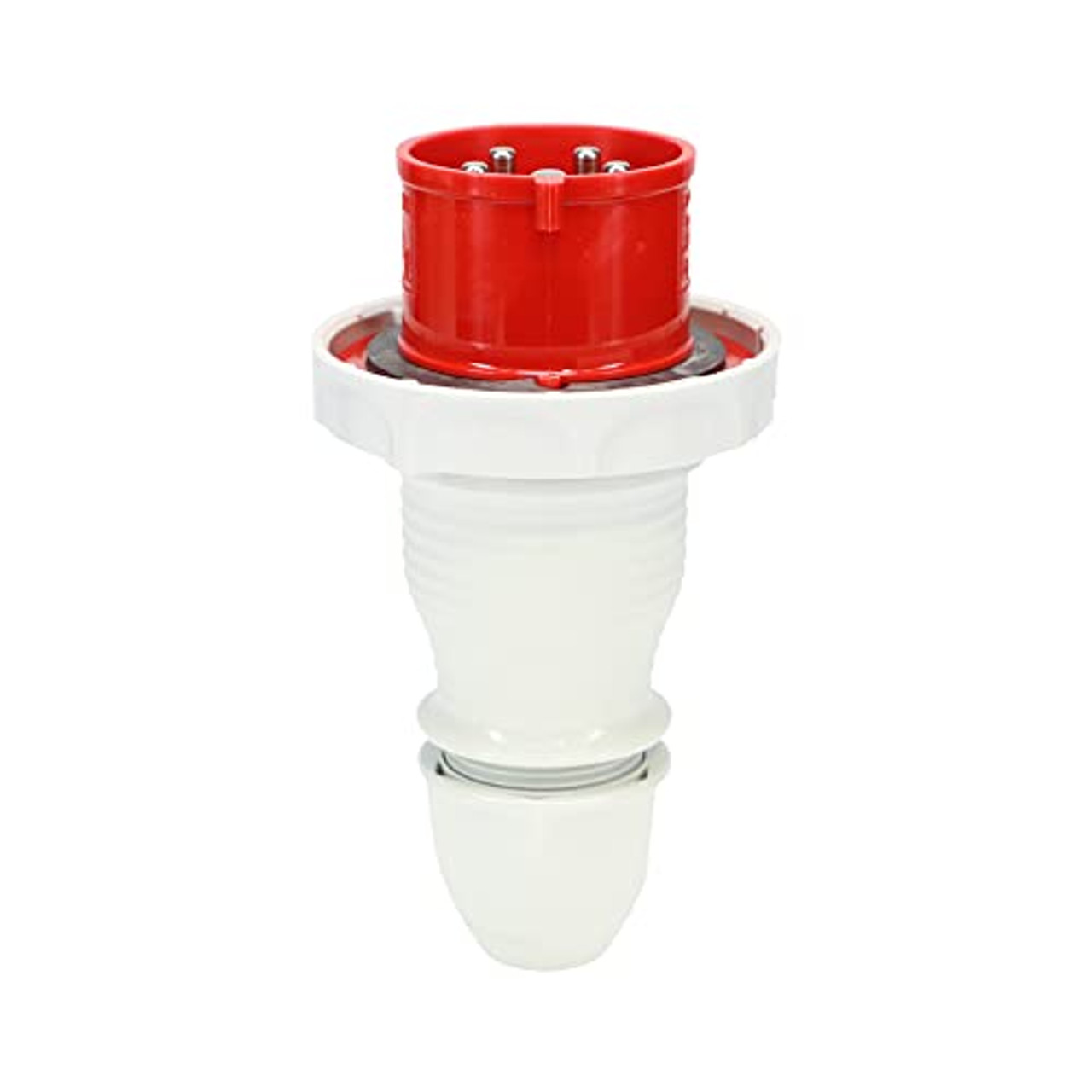

Walther Electric 239 Pin and Sleeve Plug 32 Amp 5 Wire 400 VAC 6Hr IP67 Watertight (Red) is interchangeable with other IEC 60309 industrial grade 532P6W electrical plugs.
- RETAINING DEVICE – Prevents unintentional withdrawal when male and female devices are connected
- SHROUDED PINS – Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB) - Preventing making or breaking the circuit under load
- COLOR-CODED – All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC – Heavy-duty insulated housings are resistant to corrosion and abrasions
NOTE: Interchangeable with industry part number for application. If attempting to mate with a non-walther part, please speak with a member of our engineering department.
Product Videos
Videos Hide Videos Show Videos
Custom Field
CEEtyp DEVICE TYPE IEC 60309 Plug
AMPS 32A
ENVIRONMENTAL RATING IP67 Watertight
POLES & WIRES 5 Wire = 3 Poles +Earth Ground (3P+N+G)
CLOCK POSITION 06 Hour
VOLTAGE 400 VAC
COLOR Red
CABLE GLAND External Cable Gland
CERTIFICATIONS (North America) UL Listed & CSA Certified
CERTIFICATIONS (International) CE, ENEC10, VDE, CCC, & EAC
PAIRS WITH 339 Coupler, 439 Panel Socket Straight and more
