Product Description

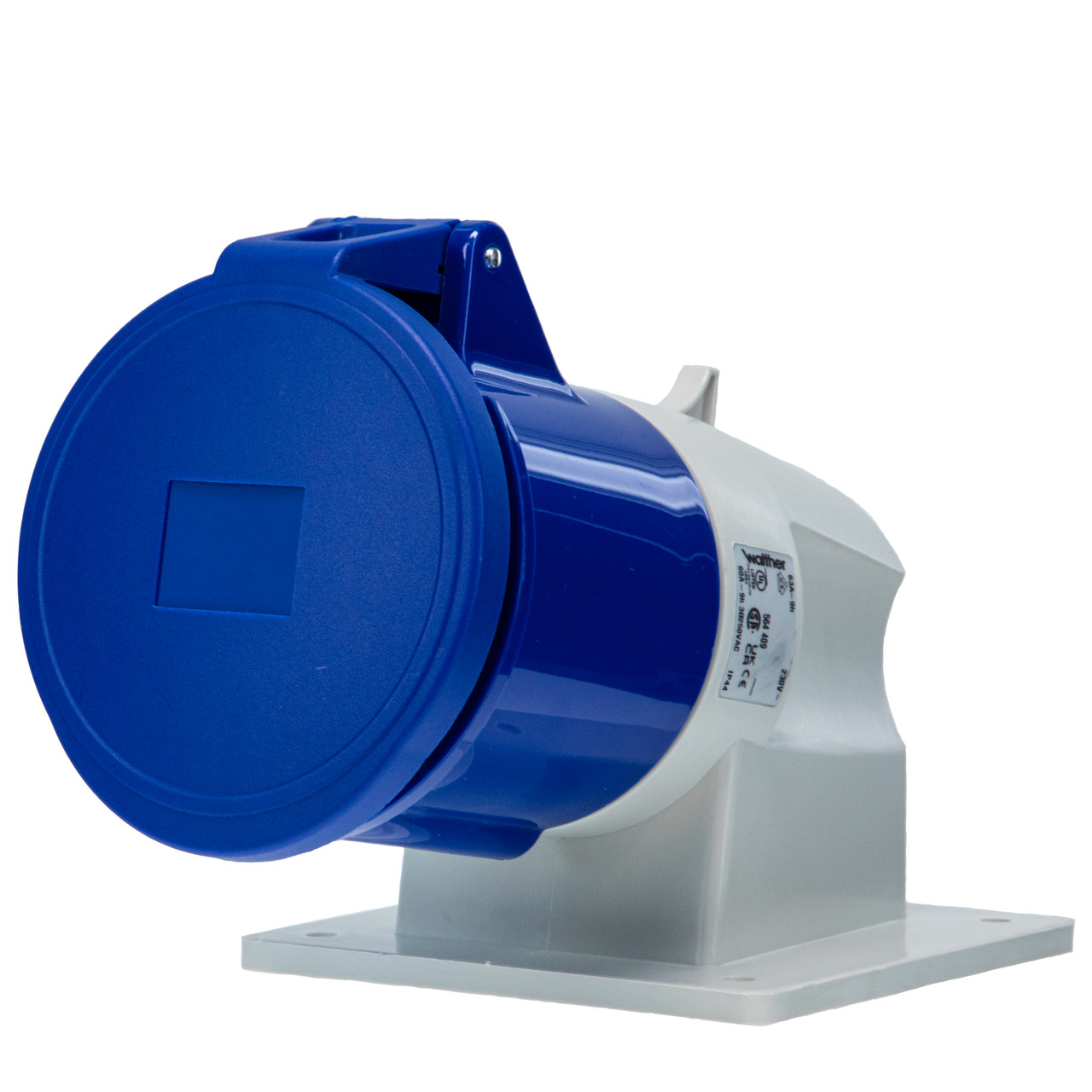

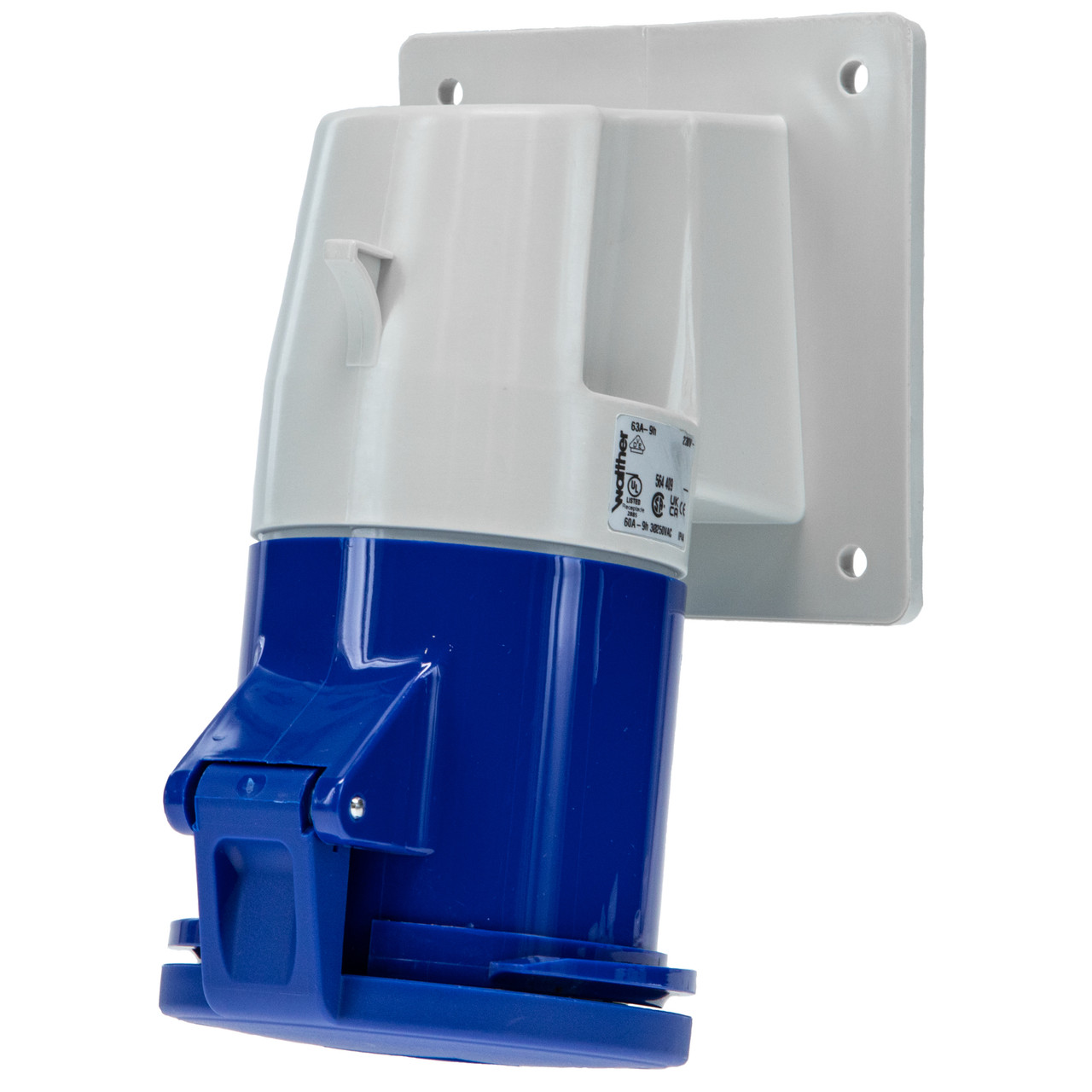

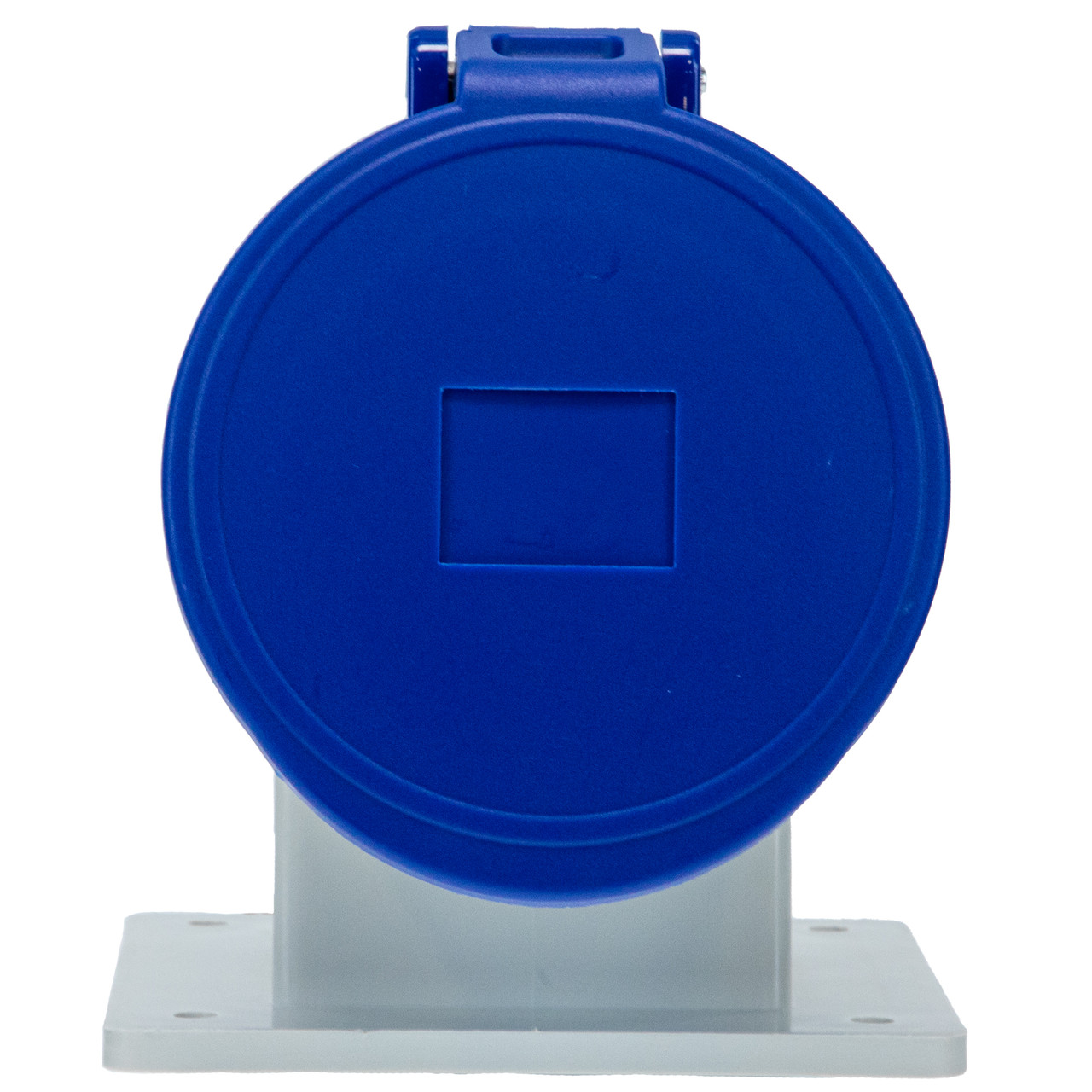

Walther Electric 564409 Pin and Sleeve Receptacle 60/63A 4 Wire 3ø 250 or 230VAC 9Hr IP44 Splashproof - Industrial Grade IEC (Blue) is interchangeable with other IEC 60309 industrial grade 460R9 and/or 463R9 electrical plugs.
- RETAINING DEVICE – Prevents unintentional withdrawal when male and female devices are connected
- SHROUDED PINS – Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB) - Preventing making or breaking the circuit under load
- COLOR-CODED – All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC – Heavy-duty insulated housings are resistant to corrosion and abrasions
NOTE: Interchangeable with industry part number for application. If attempting to mate with a non-walther part, please speak with a member of our engineering department.
Product Videos
Custom Field
DEVICE TYPE Receptacle
AMPS (North American) 60A
AMPS (International) 63A

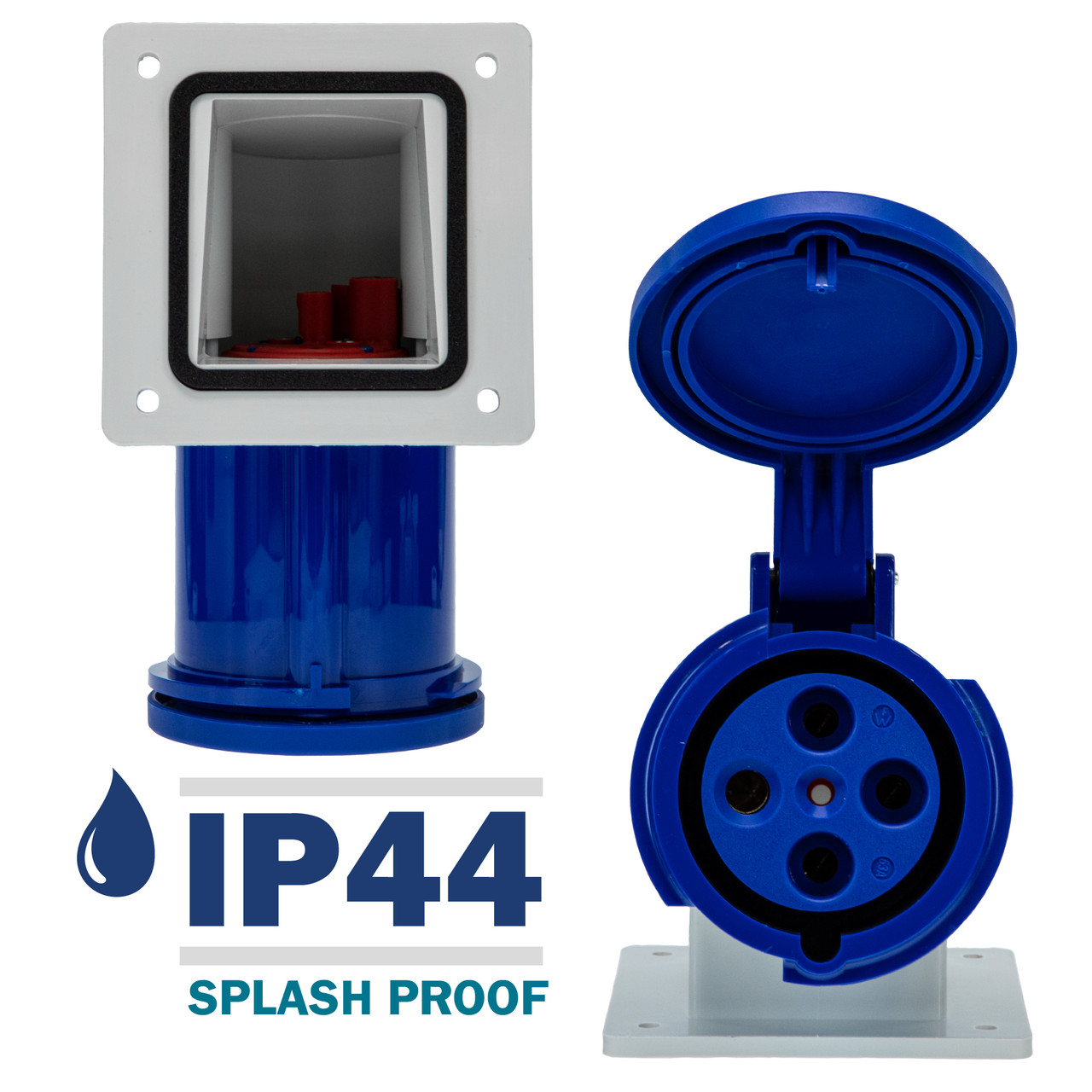

ENVIRONMENTAL RATING IP44 Splashproof
POLES & WIRES 4 Wire = 3 Poles +Earth Ground (3P+G)
CLOCK POSITION 09 Hour
VOLTAGE (North American) 3ø 250 VAC
VOLTAGE (International) 230 VAC
COLOR Blue
ANGLE OF DEVICE Angled 80°
CERTIFICATIONS (North America) UL Listed & CSA Certified
CERTIFICATIONS (International) CE, ENEC10, VDE, CCC, & EAC
PAIRS WITH 261409, 269409 Plug and more
