Product Description

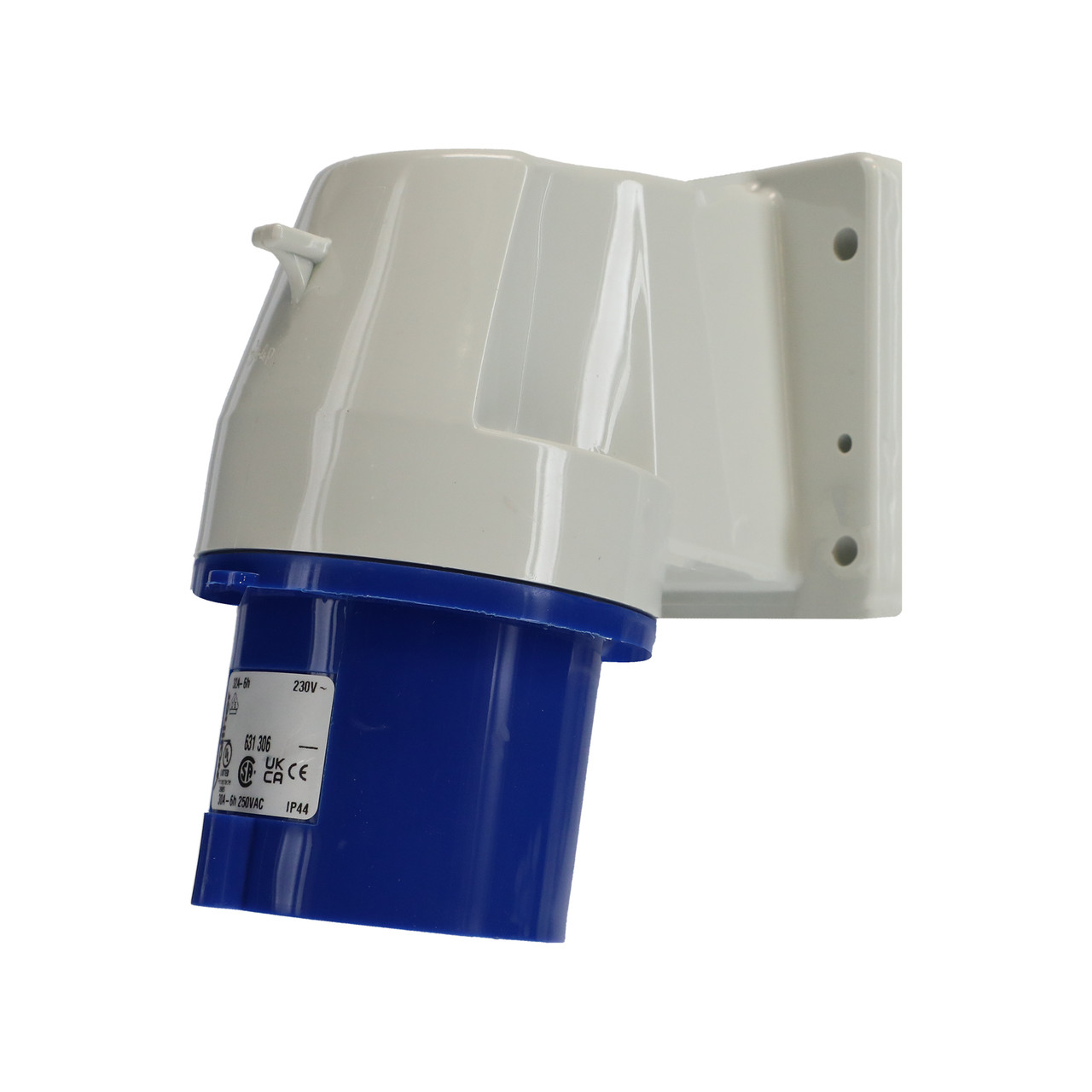

Walther Electric 631306 Pin and Sleeve Inlet 30A/32A 3 Wire 250/230 VAC 6Hr IP44 Splashproof Angled 80° (Blue) is interchangeable with other IEC 60309 industrial grade 330B6/332B6 electrical inlets.

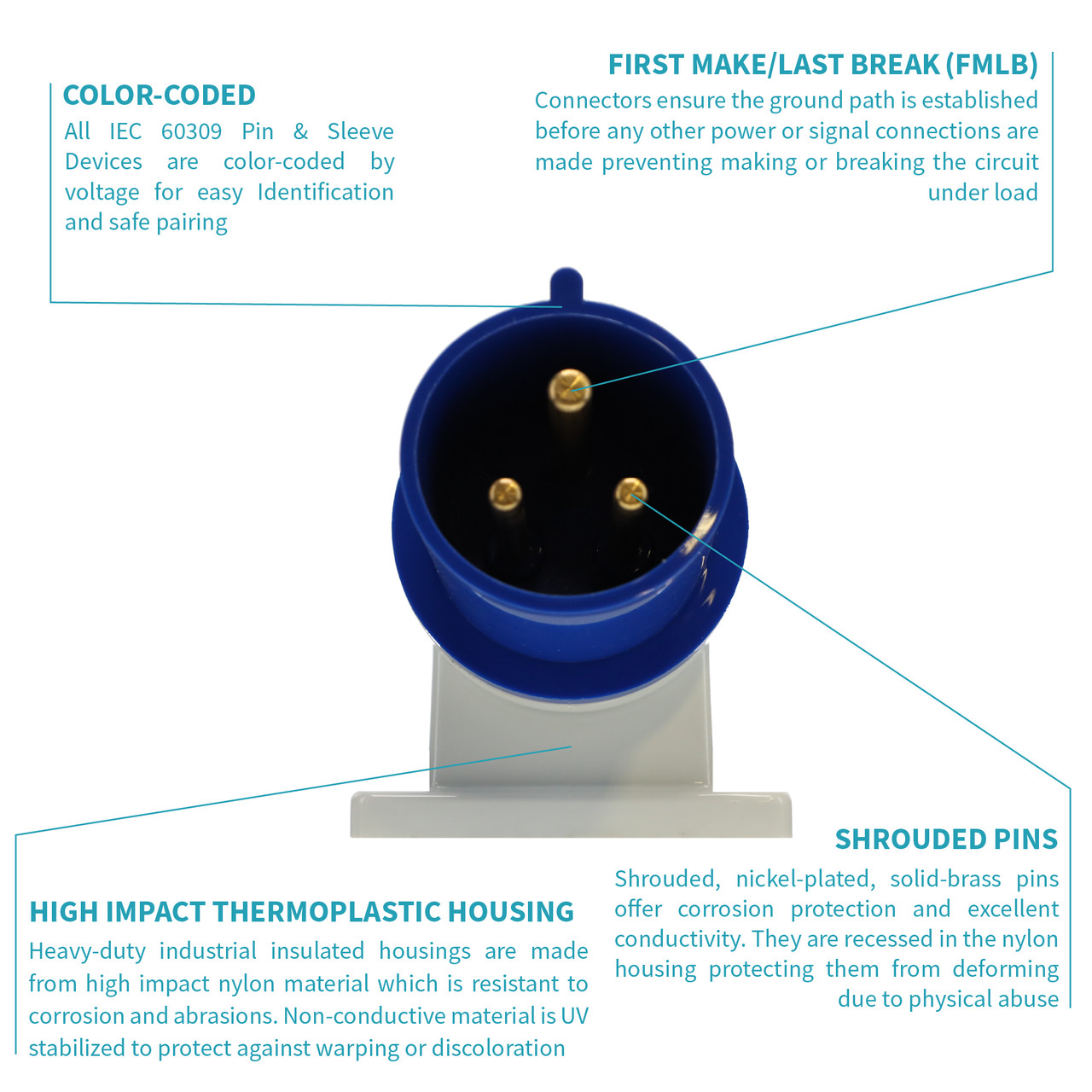

- SHROUDED PINS – Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- COLOR-CODED – All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC – Heavy-duty insulated housings are resistant to corrosion and abrasions

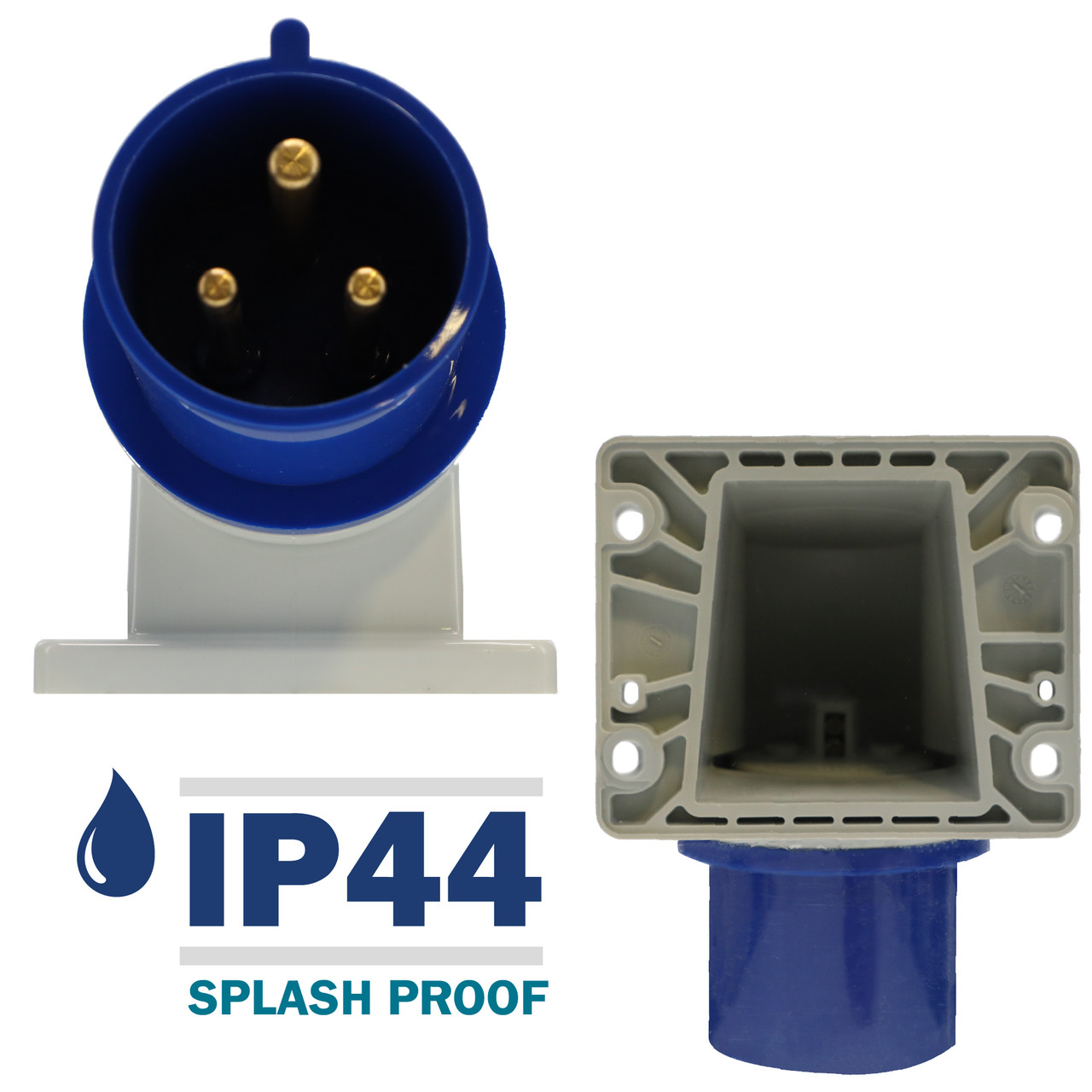

- IP44 SPLASHPROOF - Device is sprayed with water for 10 minutes and immediately afterwards subjected to splashing water in all directions (360°)
- SURFACE MOUNT – Includes 4 pre-drilled holes for quick and easy mounting
NOTE: Interchangeable with industry part number for application. If attempting to mate with a non-walther part, please speak with a member of our engineering department.
Product Videos
Custom Field
CEE typ DEVICE TYPE IEC 60309 Inlet / Appliance Inlet
AMPS (North American) 30 amp
AMPS (International) 32 amp
ENVIRONMENTAL RATING IP44 Splashproof
POLES & WIRES 3 Wire = 2 Poles +Ground (2P+G)
CLOCK POSITION 06 Hour
VOLTAGE (North America) 250 VAC
VOLTAGE (International) 230 VAC
COLOR Blue
ANGLE OF DEVICE Angled 80°
CERTIFICATIONS (North America) UL Listed & CSA Certified
CERTIFICATIONS (International) CE, ENEC10, VDE, CCC, & EAC
PAIRS WITH 331306 Connector and more
