Product Description

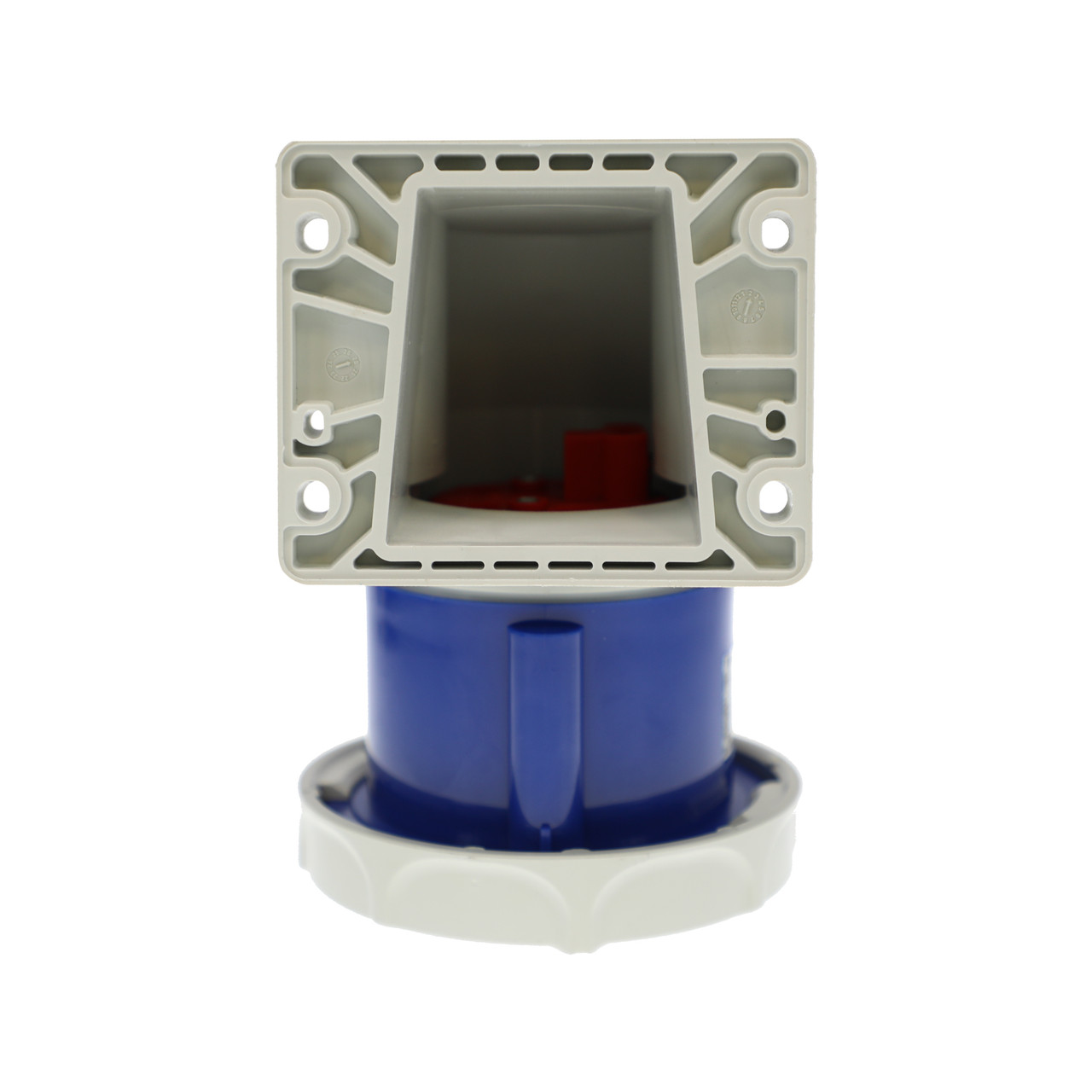

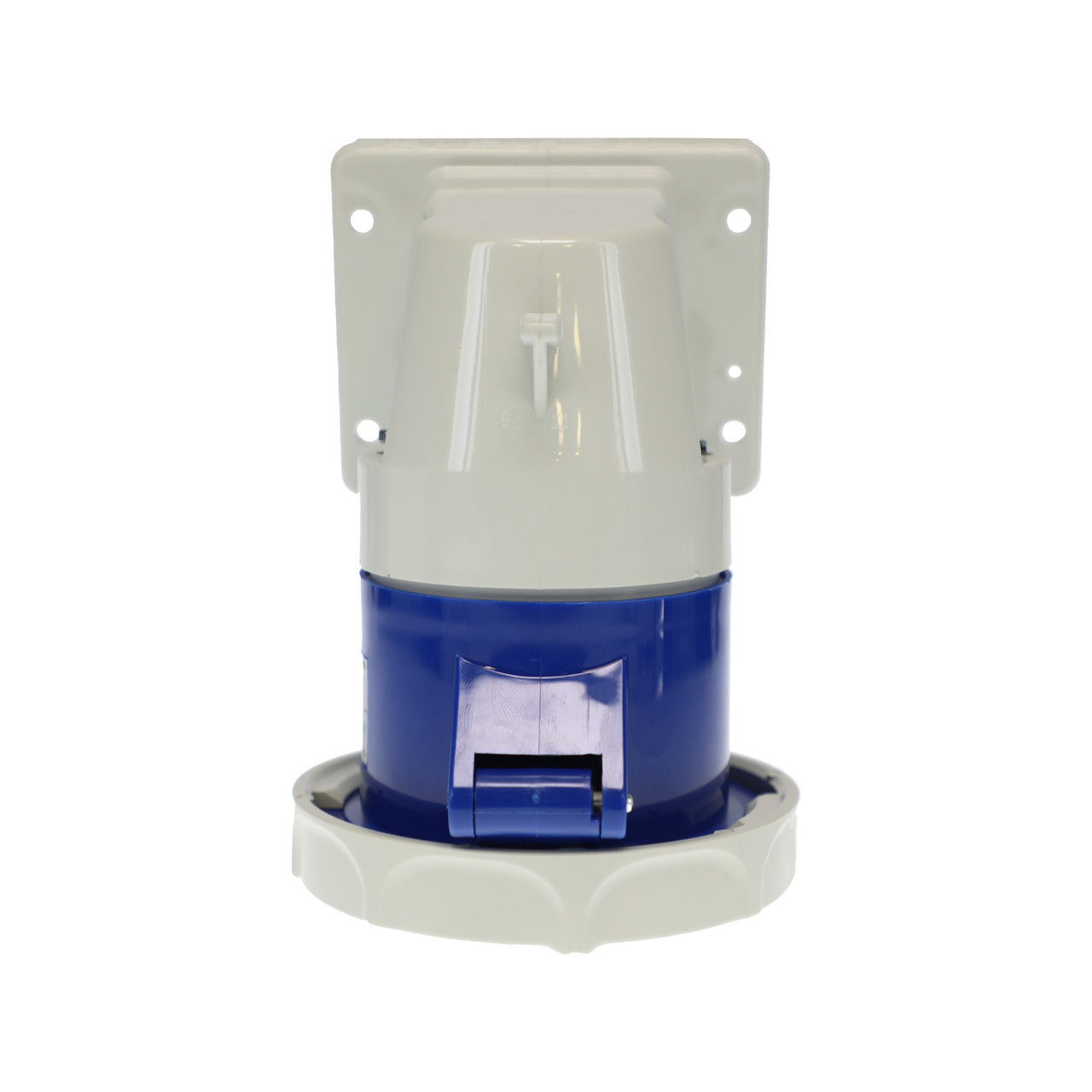

Walther Electric 538509 Pin and Sleeve Receptacle 30/32A 5 Wire 3 Phase 208 VAC IP67 Watertight (Blue) is interchangeable with other IEC 60309 industrial grade 530RA9W electrical receptacles.
- TERMINAL IDENTIFICATION - Ground, neutral & phase terminals are clearly marked for easy of wiring

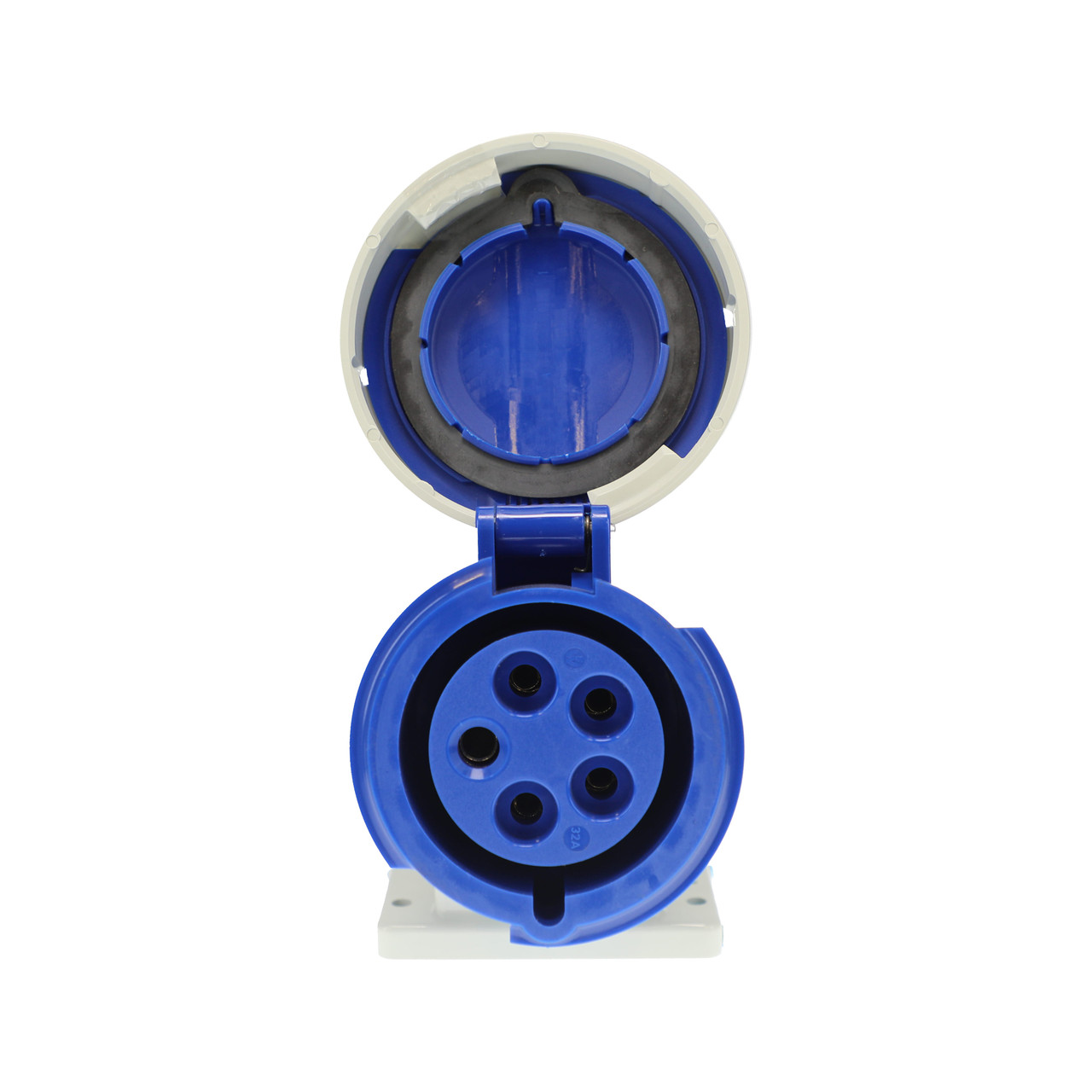

- SPRING LOADED GASKETED COVER – Snaps into place when disconnected. Protects against environment
- RECESSED CONTACTS – Protects against accidental encounter with live contacts
- COLOR-CODED – All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC – Heavy-duty insulated housings are resistant to corrosion and abrasions
Note: All Specifications are subject to change without notice. Consult a Walther Electric Engineer for the latest specifications or speak with a member of our Customer Care Team +1 (800) 925-8437
Product Videos
Custom Field
CEE typ DEVICE TYPE IEC 60309 Receptacle / Panel Socket
AMPS 30A / 32A
ENVIRONMENTAL RATING IP67 Watertight

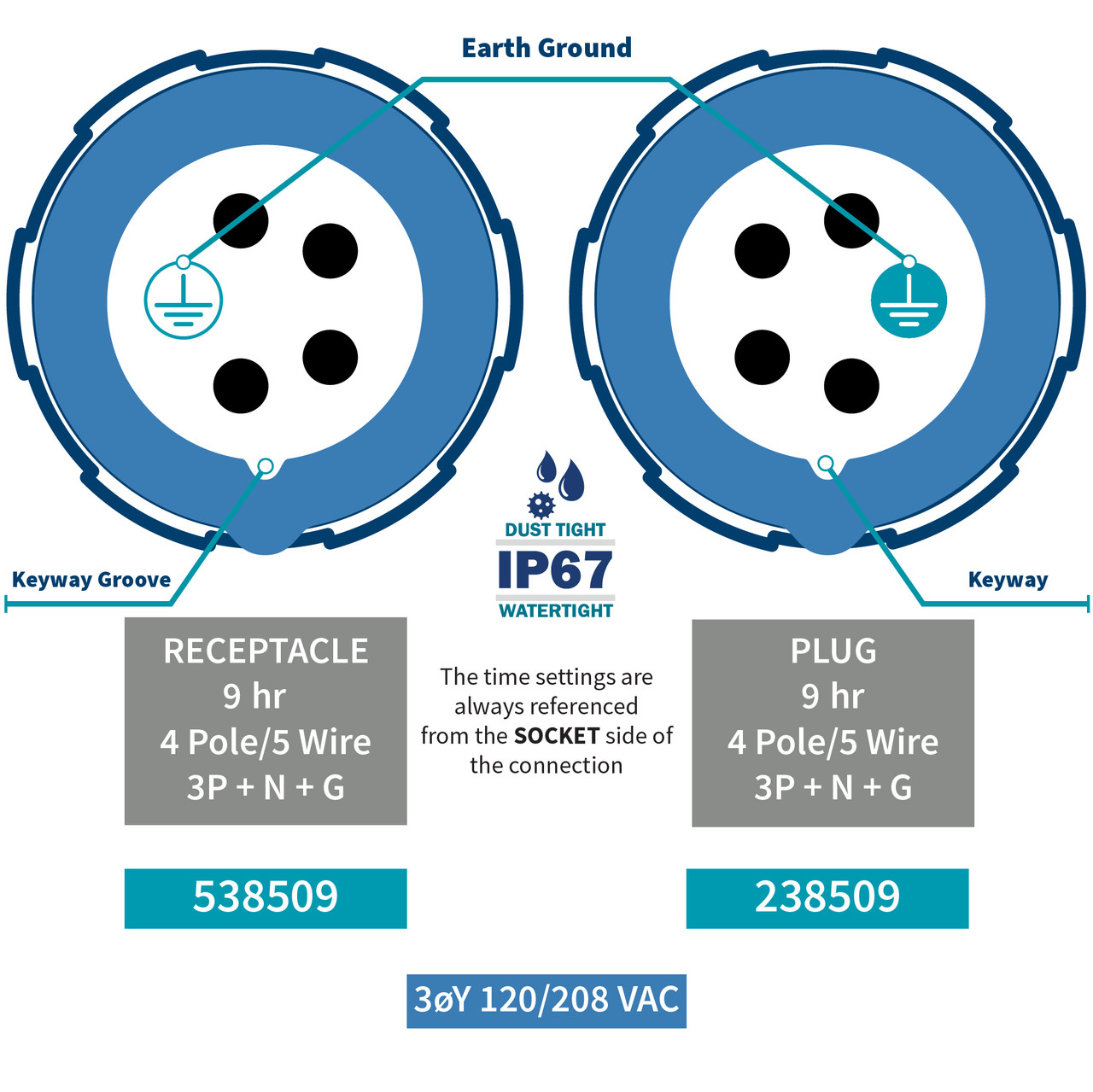

POLES & WIRES 5 Wires = 3 Poles +Neutral +Earth Ground (3P+N+G)
CLOCK POSITION 09 Hour
VOLTAGE (North America) 3øY 120/208 VAC
VOLTAGE (International) 230 VAC
COLOR Blue

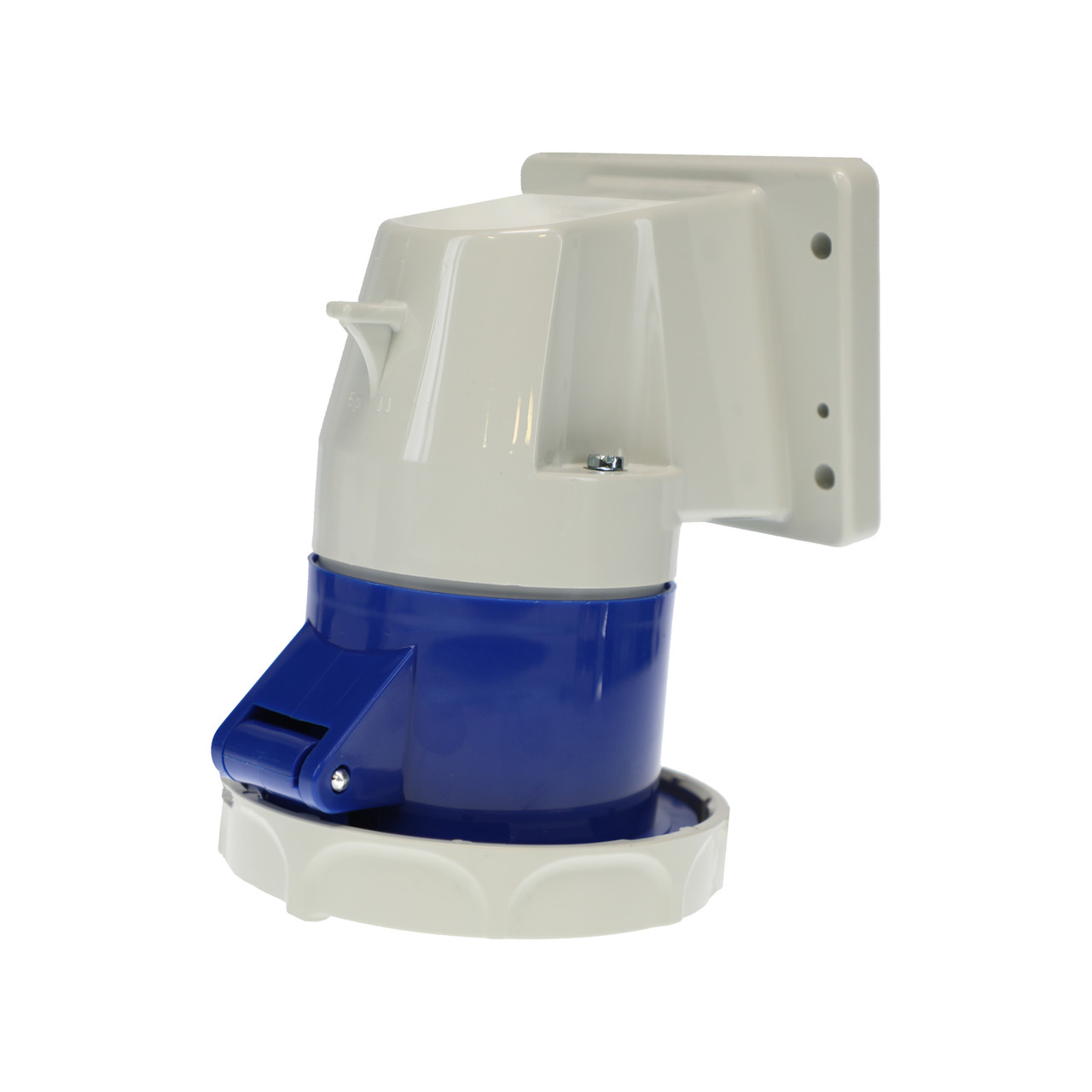

ANGLE OF DEVICE Angled 80°
CERTIFICATIONS (North America) UL Listed & CSA Certified
CERTIFICATIONS (International) CE, ENEC10, VDE, CCC, & EAC
PAIRS WITH 238509 Plug and more
