Product Description
Walther Electric 232505 Pin and Sleeve Plug 30A 5 Wire 347/600 VAC 5Hr IP44 Splashproof (Black) is interchangeable with other IEC 60309 industrial grade 530P5 electrical plugs.
- RETAINING DEVICE – Prevents unintentional withdrawal when male and female devices are connected

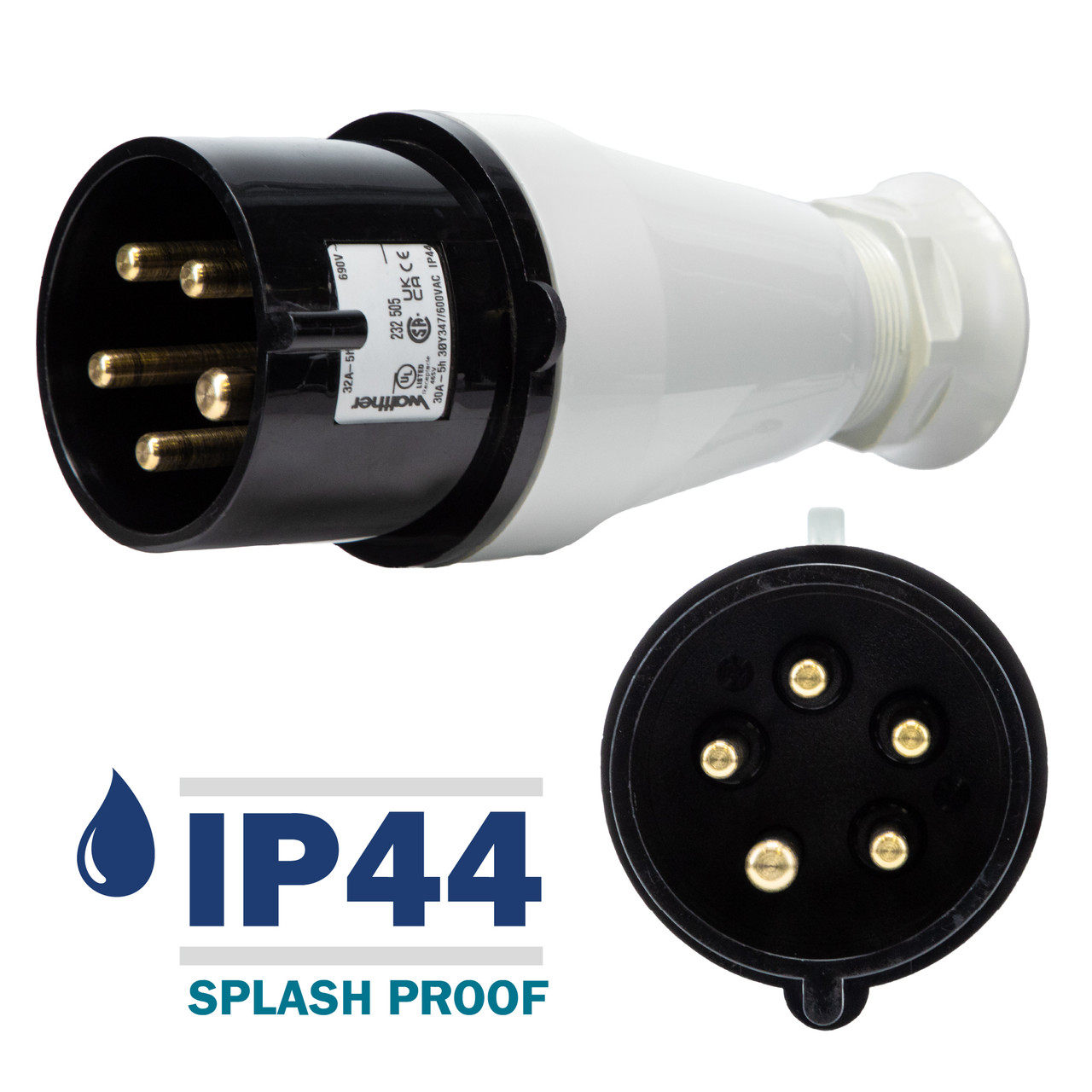

- SHROUDED PINS – Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB) - Preventing making or breaking the circuit under load
- COLOR-CODED – All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC – Heavy-duty insulated housings are resistant to corrosion and abrasions
NOTE: Interchangeable with industry part number for application. If attempting to mate with a non-walther part, please speak with a member of our engineering department.
Product Videos
Custom Field
CEE typ DEVICE TYPE IEC 60309 Plug
AMPS 30A
ENVIRONMENTAL RATING IP44 Splashproof

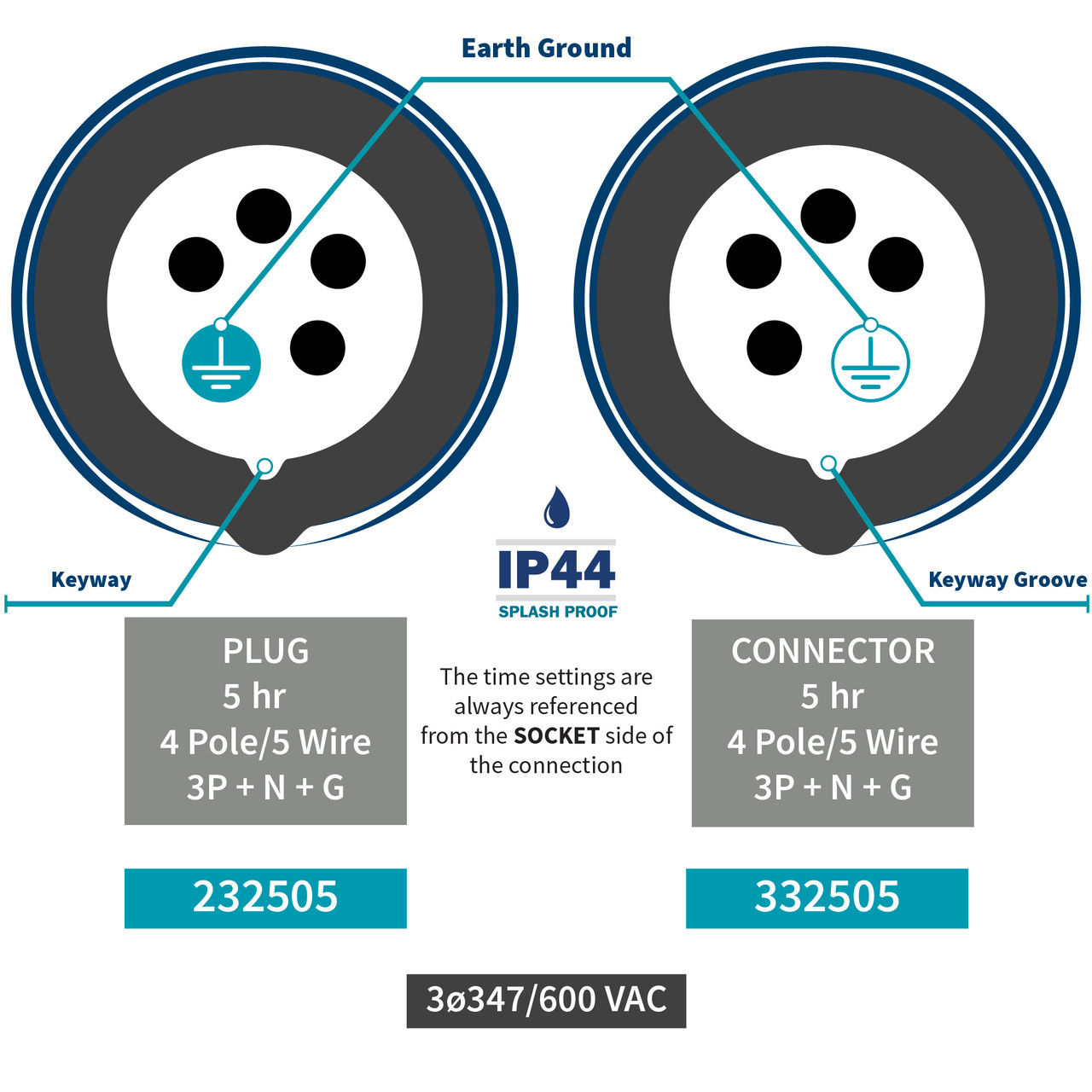

POLES & WIRES 5 Wires = 3 Poles +Neutral +Earth Ground (3P+N+G)
CLOCK POSITION 05 Hour
VOLTAGE (North America) 3øY 347/600 VAC
COLOR Black
CABLE GLAND Trumpet/Bell Gland
CERTIFICATIONS (North America) UL Listed & CSA Certified
PAIRS WITH 332505 Connector and more
